Szczegóły Produktu:
Zapłata:
|
name: | three cone bit / hard rock drill bits | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
IADC: | 617G | G: | Reinforced Gauge Protection |
Formation: | Medium hard with higher compressive strength as well as thick and streaks | ||
High Light: | wiertła do twardych skał,wiertła do studni wodnych,FA617G Oil Field Drill Bits |

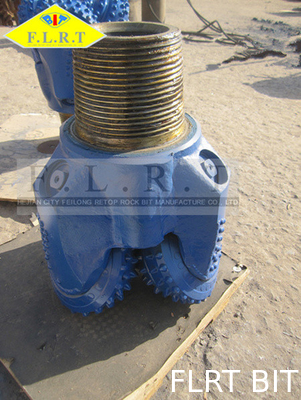

12 1/4" FA617G , Tricone Rock Bit, Medium hard with higher compressive strength as well as thick and streaks
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| | | | | | | | |
| | | | | | | | |
| | | | | | | | |
| | | | | | | |
ROLLER CONE BIT FLUID CIRCULATION
Drilling fluid passes from the drillstring and out through nozzles in the bit.
As it passes across the face of the bit it carries the drilled cutting from the cones and into the annulus.
The original design for rock bits only allowed the drilling mud to be ejected from the middle of the bit .
This was not very efficient and led to a build up of cuttings on the face of the bit (bit balling) and cone erosion.
A more efficient method of cleaning the face of the bit was therefore introduced.
The fluid is now generally ejected through three jet nozzles around the outside of the bit body .
The turbulence created by the jet streams is enough to clean the cutters and allow efficient drilling to continue.
